SKU: MX-ER504IN1

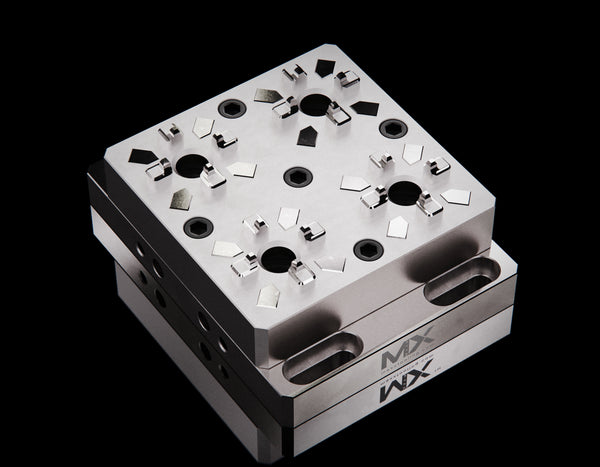

Maxx-ER Multi Chuck Pneumatic Quad Chuck System

Regular price Rs. 292,900.00 INR Sale

Maxx-ER Premium Pneumatic 4 in 1 50 Chuck System is 100% cross compatible with EROWA ITS 50 . The Maxx-ER Multi Chuck Pneumatic 4 in 1 Chuck System is specifically...
Availablity: In Stock
Availablity: In Stock

Rs. 292,900.00

Maxx-ER Premium Pneumatic 4 in 1 50 Chuck System is 100% cross compatible with EROWA ITS 50 . The Maxx-ER Multi Chuck Pneumatic 4 in 1 Chuck System is specifically designed to maximize space for 6 separate chucks in 170MM x 220MM footprint,

Maxx-ER four chuck system has 3.543/90MM center to center spacing

This is a cost effective Premium Full Stainless Chuck System

Repeatability: 0.002 mm (0.00008“)
FLATNESS CHUCK TO CHUCK 0.0002"

Version

 Maxx-ER Premium Pneumatic 4 in 1 50 Chuck System

Material  Stainless steel, HB57-60
Size  170*220*77.5mm
Air pressure require  6 bar, 6000N
Switch  4 chucks control by 1 switch
