SKU: MX-PC115287

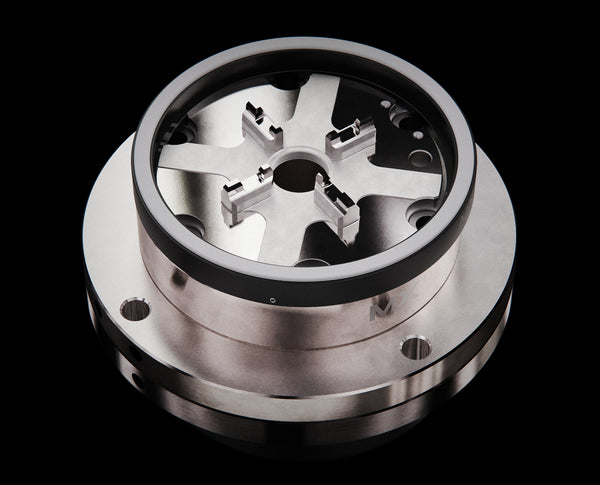

Maxx-ER PowerChuck P 115287 Pneumatic Chuck 204

Regular price Rs. 246,300.00 INR Sale

Maxx-ER PowerChuck P 115287 Pneumatic Chuck 204 is 100% cross compatible with Erowa ITS ER-115287.  Accepts P Pallets, 100, 50 and Gplates Includes ground base plate ø 204 mm...
Availability: 1-2 Weeks Delivery. Contact us for more details
Availability: 1-2 Weeks Delivery. Contact us for more details

Rs. 246,300.00

Maxx-ER PowerChuck P 115287 Pneumatic Chuck 204 is 100% cross compatible with Erowa ITS ER-115287.

Accepts P Pallets, 100, 50 and Gplates

Includes ground base plate ø 204 mm and sealing ring

The mounting plate can be customized to suit your exact specific needs

Version

Repeatability: 0.002 mm (0.00008“) Indexing: 4x90° divisible

Direct Mount.

Material  Stainless Chuck, 57-60HRC
Cross Compatible  ER-115287
Operation

 With air jet, laterally.  With control unit through the two lines at rear

Air Pressure 6 bar
Force 10,000 NM
