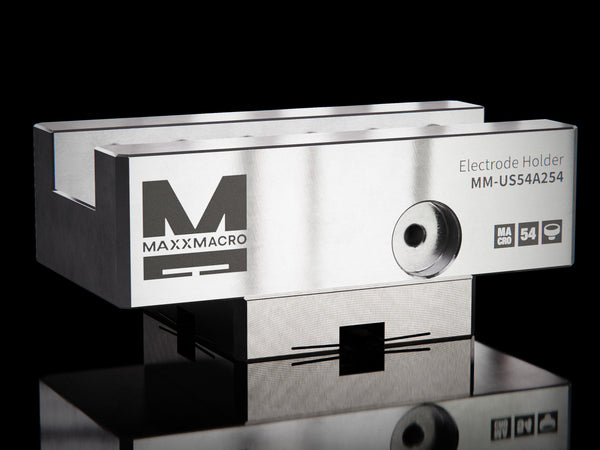

MaxxMacro 54 Aluminum Slotted Electrode Holder U25x4" comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system.
MaxxDesign Exclusive Features:
- High quality materials.
- 100% cross-compatible with OEM system
Product Information:
MaxxMacro 54 Aluminum U25 x 4 Inches Long Slotted Electrode Holder is 100% cross compatible with System 3R Macro OEM products.
MaxxMacro 54 Aluminum Slotted Electrode Holder Includes 6 set screws and is fully assembled with a MaxxMacro 54 Performance Pallet mounted and ready to run.
Designed for use with saw cut or milled blanks. Perfect for Ribs and long Electrodes with 4" worth of mounting area a rigid setup like this will ensure a quality burn.
MaxxMacro 54 Aluminum Slotted Electrode Holder is in this instance only stocked in Aluminum. We found the weight of stainless or brass could pose issues for some users.
100% cross compatible with System 3R Macro Holder
Product Details:
| Product Name | MaxxMacro 54 Aluminum Slotted Electrode Holder U25x4" |
| SKU | MM-US54A254 (MX-3RU25A4) |
| Pallet Included | See print |
| System | MaxxMacro (System 3R 100% Cross-Compatible) |
| Repeatability | 0.002mm |
| Material | See above |
| Cross-Compatible | 3R-658.2E-S, 3R-658.4E-S |
| Dimensions | - |
| Weight | - |
