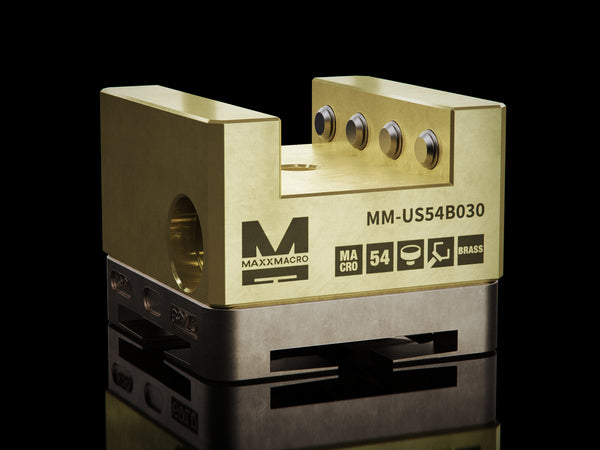

MaxxMacro 54 Brass Slotted Electrode Holder U30 comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system.
MaxxDesign Exclusive Features:
- High quality materials.
- 100% cross-compatible with OEM system
Product Information:
MaxxMacro 54 Brass Slotted Electrode Holder U30 Automated Changing is 100% cross compatible with System 3R 3R-658.2E-S Slotted Electrode Holder. Works on all System 3R Macro Systems.
Repeatability .002MM
MaxxMacro 54 Stainless Slotted Electrode Holders are assembled with Stainless screws and our MaxxMacro 54 Stainless Cast Pallet Plated
Includes 4 Stainless Set Screws
Includes proper chip pocket position for automated robotic loading
Product Details:
| Product Name | MaxxMacro 54 Brass Slotted Electrode Holder U30 |
| SKU | MM-US54B030 (MX-3RU-ABR30) |
| Pallet Included | See print |
| System | MaxxMacro (System 3R 100% Cross-Compatible) |
| Repeatability | 0.002mm |
| Material | See above |
| Cross-Compatible | 3R-658.2E-S, 3R-658.4E-S |
| Dimensions | - |
| Weight | - |
Returns Policy
You may return most new, unused items within 30 days of delivery for a refund. There is a 20% restock fee if the item is returned due to customer error. The customer is responsible for the return shipping costs if the return is a result of your error (Not if received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the 'Complete Orders' link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Shipping
We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.
When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.
Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.
International shipments it is the customers responsibility to determine if there are any taxes or import duties payable and to make arrangements to clear and pay these fees if applicable.MaxxMacro 54 Pocket/Slotted Electrode Holder
Published on: Jan 9, 2024
In the dynamic world of CNC machining, the right tools can make all the difference. Introducing MaxxMacro's Electrode Holders, a trusted classic that has stood the test of time and continues to redefine precision in machining. In this blog post, we'll delve into the features and benefits of the MaxxMacro 54 Pocket/Slotted Electrode Holder, available in Aluminum, Stainless Steel, and Brass variants.
Premium Craftsmanship and Robust Design
Crafted from premium materials, MaxxMacro's Electrode Holders are more than just tools—they are precision instruments ready to tackle your machining needs. Each variant comes fully assembled on the robust MaxxMacro 54 Stainless Cast Pallet, ensuring durability and longevity in even the most demanding applications.
Designed specifically for CNC and Sinker EDM applications, these holders excel when used with saw-cut and milled blanks. The inclusion of chip pocket positions facilitates automated robotic loading, streamlining your machining process. Moreover, with 100% cross-compatibility with System 3R products, integrating MaxxMacro holders into your existing setup is seamless.
MaxxMacro Pocket Holders: Secure and Adaptable
Choose the MaxxMacro Pocket Holders for a variety of pocket sizes that securely anchor your workpiece. This design offers adaptability for various electrode machining needs, providing a reliable solution for different projects.
MaxxMacro Slotted Holders: Versatility at its Best
Explore the MaxxMacro Slotted Holders, featuring a slotted design for enhanced versatility in sizes ranging from 15mm to 35mm width. Equipped with 4 set screws, these holders firmly secure any workpiece, ensuring stability and precision during the machining process.
Explore the Full Potential
Ready to take your machining operations to the next level? Visit our holder collection to explore the full potential of MaxxMacro 54 Electrode Holders: https://maxxtooling.com/en-gl/collections/maxxmacro-holders/
Are you Making your own 3R EDM Tooling? You have to talk to Maxx Tooling
Published on: Sep 10, 2017
Are you using a 3R Holder that looks like this? You can do better. Why settle for costly OEM holders or makeshift alternatives? Maxx Tooling offers precision-engineered holders—solid stainless steel, one-piece construction, and fully compatible with 3R systems.
Stop spending time and resources on makeshift solutions to reduce OEM expenses. At Maxx Tooling, we believe you deserve high-quality, precision holders without breaking the bank. If you’re currently modifying your own tooling to save on costs, or even manufacturing your own holders, reach out to us first. You may be surprised by the affordable solutions we offer without sacrificing the quality or precision you need.
Maxx Tooling doesn’t just supply parts; we’re here to be a trusted partner in delivering reliable, affordable, and precision-crafted solutions that match the highest standards in the industry.
Maxx Tooling saved this client over a $1,000,000 in EDM Tooling
Published on: Jul 6, 2017
How We Helped a Client Save $873,000 and Double Their Inventory with MaxxMacro S Holders
We recently converted four clients from System 3R 40mm Macro to Coin Adapters to our MaxxMacro Stainless S Holders, and the results have been game-changing.
Here’s a quick look at the impact for one of our latest clients:
They were ready to invest in 500 System 3R holders at a cost nearing $1 million. Instead, after consulting with us, they achieved the same performance with S holders priced at approximately $40 each—dropping their total spend to just under $40,000. Here’s how it added up:
-
Cost Savings of $800,000: Switching from $1800 coin adapters to our S holders led to an incredible cost reduction.
-
Doubled Holder Inventory: The client received twice the number of holders they originally planned, along with free spigots for each.
-
Improved Efficiency and Labor Savings: By eliminating the need to glue and screw pallets or coins to electrodes, they cut out two non-value-added positions, saving an additional $73,000 per year.
-
Enhanced Reliability: Macro holders are more reliable than coins, allowing them to fully utilize their tool changers without the constant need to check electrode positioning.
So, why didn’t 3R suggest this solution? We know why. At Maxx Tooling, we’re here to help U.S. manufacturers work smarter and more efficiently—because when we find a way to improve your process and reduce your costs, it’s a win-win.
Ready to upgrade your tooling? Let’s make it happen.
The 2024 SKU Update for Enhanced Clarity and Compatibility
Published on: Nov 8, 2024
At MaxxTooling, we're always looking for ways to improve your experience with our products and services. This year, we introduced a major update to our SKU system, designed to simplify product identification, improve inventory management, and enhance your overall experience. Here’s what this new system brings to the table—and how it benefits you.
What is a SKU? A SKU (Stock Keeping Unit) is a unique identifier used to track a product in inventory and make it easy to identify.
Why Did We Update the SKU System?
As our product family expands, we needed a improved SKU system that would deliver the following benefits:
- Consistency and Clarity: SKUs now follow a single, well-defined rule, making them easier to read and understand.
- Family and Product Matching: Each SKU reflects its product family, allowing you to identify compatible items more easily.
- Support for Future Growth: The new format makes it simple to accommodate new product introductions, family expansions, and variations.
- Integration with Adapter Plates and Custom Products: The revised structure also allows for easier integration of adapter plate codes, optional parts, and other customization options.
- Better ERP and Spreadsheet Integration: Standardized SKUs streamline data entry, making it easier to integrate with ERP systems, spreadsheets, and custom properties.
What Does the New SKU Format Look Like?
Our SKUs now follow a standardized, informative structure:
MX-XXXXMSSS(-O-CODE)
Here’s what each section means:
- Prefix (MX/MM): Identifies MaxxTooling or MaxxMacro as the source, with additional prefixes planned for future products.
- Family Code (XXXX): A four-character code indicating the product family.
- Material Code (M): One character indicating the material.
- Size Code (SSS): Three digits denoting the product’s size or model.
- Optional Code (O): A single character used for optional features, such as performance enhancements, index-disabled features, MXRefix systems, etc.
- Adaptation Code (-CODE): Optional codes for adapter plates, machine-specific modifications, or client custom modifications.
Revision Dates and Compatibility Page
The SKU update process has occurred gradually over the year, with different products receiving updates at different times. Each updated SKU has a specific Revision Date that you can check to ensure compatibility with your needs.
To make this transition easier, we’ve created a dedicated SKU Compatibility Page, where you can:
- Look up compatibility between old and new SKU formats
- Check revision dates for each product
- Access the latest product pages for detailed specifications
Visit the SKUs Compatibility Page
New Laser Markings for Improved Operator Experience
Along with our SKU system update, we’ve also made a significant improvement to the way we laser engrave our products. All of our items now feature new, detailed laser markings that provide essential product information directly on the part. This includes data such as ports, maximum torque values, and other key specifications. These updates make it easier for operators to quickly identify important features, improving workflow efficiency and reducing the chance of errors. The enhanced laser markings are part of our ongoing commitment to making your experience with our products as seamless and efficient as possible.
Our Commitment to Continual Improvement
Updating our SKU system is just the beginning. As we continue expanding and enhancing our product offerings, we’ll keep refining this system to support future growth and product variations. Our goal is to make it as easy as possible for you to select, track, and integrate our products into your workflows.
Thank you for choosing MaxxTooling as your workholding partner. Please explore our SKU Compatibility Page for more information, or feel free to reach out if you have any questions.
*This update was applied to the MaxxMacro® and MaxxMagnum® brands, but currently does not apply to Maxx-ER® or MaxxUPC®.
